Automatic Glass Drilling Machine ZK80PLC

Glass drilling machine ZK80 is a high-precision automatic drilling machine, the machine adopts computer numerical control system (PLC + positioning module + touch display) control, by the AC servo system up and down X, Z, W axis three directions of precise positioning.When operate the machine, simply place the glass on the conveyor belt, enter the drilling position on the display, press the start button, automatically position all the holes drilled, and automatically stop when the work is completed. There are two groups of drilling heads of this machine can work at the same time or a single group of heads. This product has high drilling efficiency and accurate hole position, and is the preferred high-quality supporting equipment for curtain wall glass and other large-size large-volume glass drilling. Can be used to process production line type: tempered glass production line, etc. Production glass types: car glass, architectural glass, decorative glass, home appliance glass, furniture glass, lamp glass, tempered glass, art glass and etc. Technical parameters: Max glass: 2200x3000 Glass thickness: 3~25mm Diameter of the drill hole: Ø3~Ø200mm Weight: 850KG Power: 2.5KW Size: 2200*2700*1700mm Working table height: 1000mm

Keyword

Glass drilling machine

Glass hole machine

drill hole machine

Related Products

Product Inquiry

Product Details

Mechanical introduction：

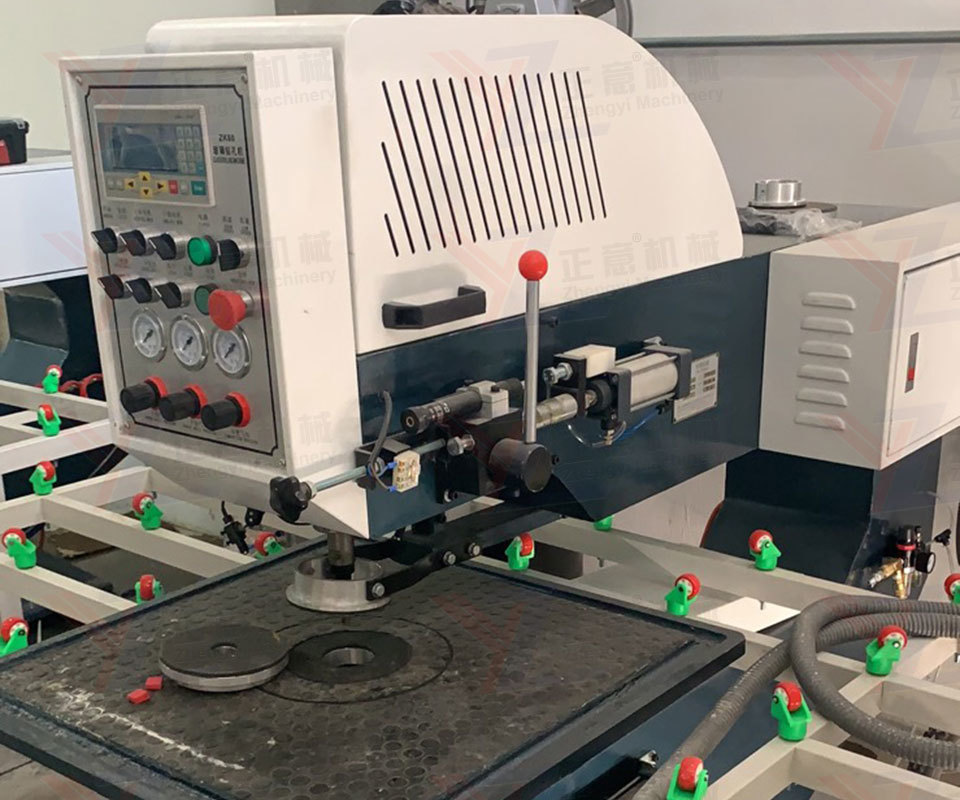

Glass drilling machine ZK80 is a high-precision automatic drilling machine, the machine adopts computer numerical control system (PLC + positioning module + touch display) control, by the AC servo system up and down X, Z, W axis three directions of precise positioning.When operate the machine, simply place the glass on the conveyor belt, enter the drilling position on the display, press the start button, automatically position all the holes drilled, and automatically stop when the work is completed. There are two groups of drilling heads of this machine can work at the same time or a single group of heads. This glass hole machine has high drilling efficiency and accurate hole position, and is the preferred high-quality supporting equipment for curtain wall glass and other large-size large-volume glass drilling.

Can be used to process production line type: tempered glass production line, etc. Production glass types: car glass, architectural glass, decorative glass, home appliance glass, furniture glass, lamp glass, tempered glass, art glass and etc.

Technical parameters:
Max glass: 2200x3000
Glass thickness: 3~25mm
Diameter of the drill hole: Ø3~Ø200mm
Weight: 850KG
Power: 2.5KW
Size: 2200*2700*1700mm
Working table height: 1000mm
