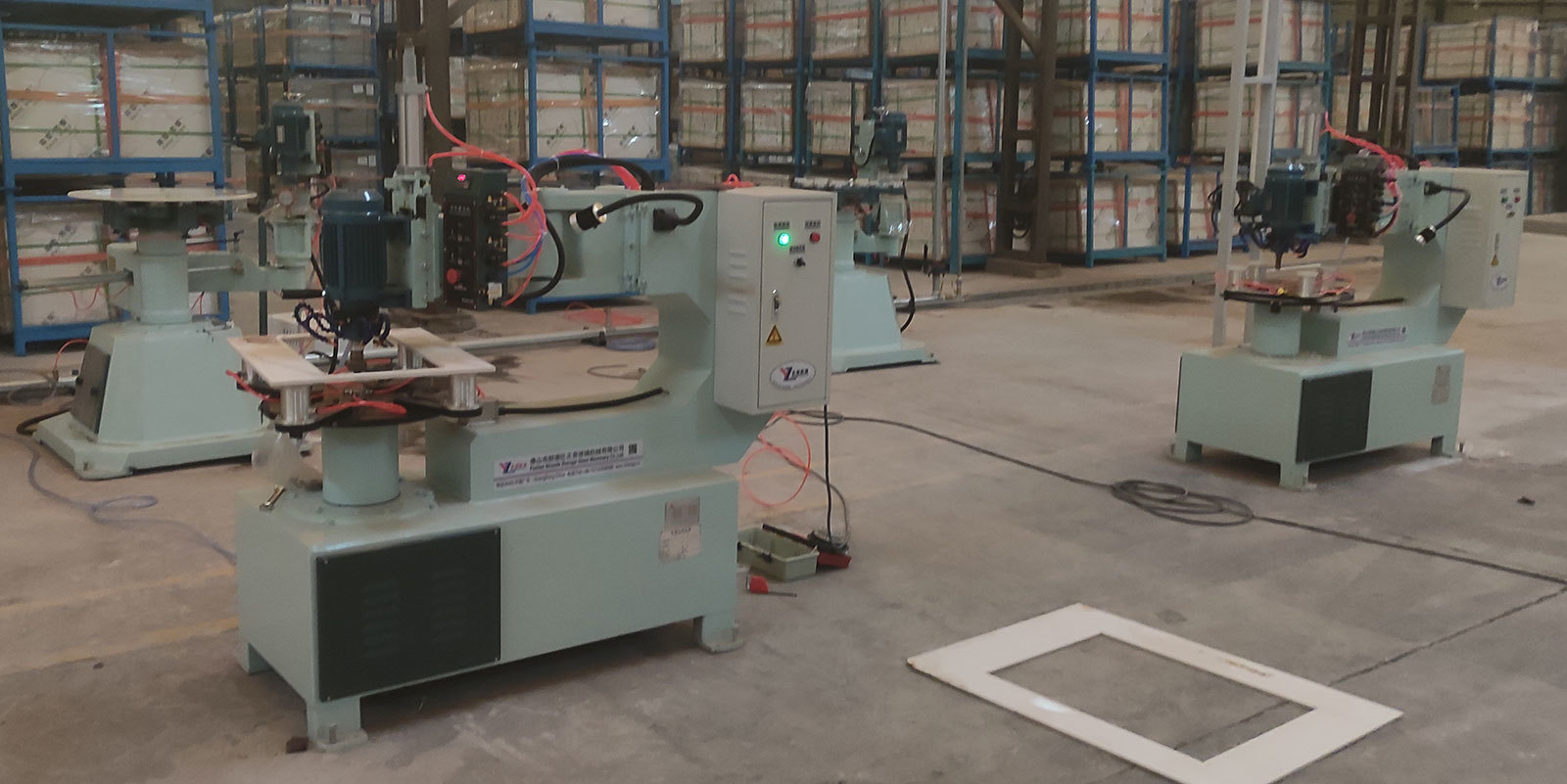

Rock Slab Basin Drilling Machine ZPK1600

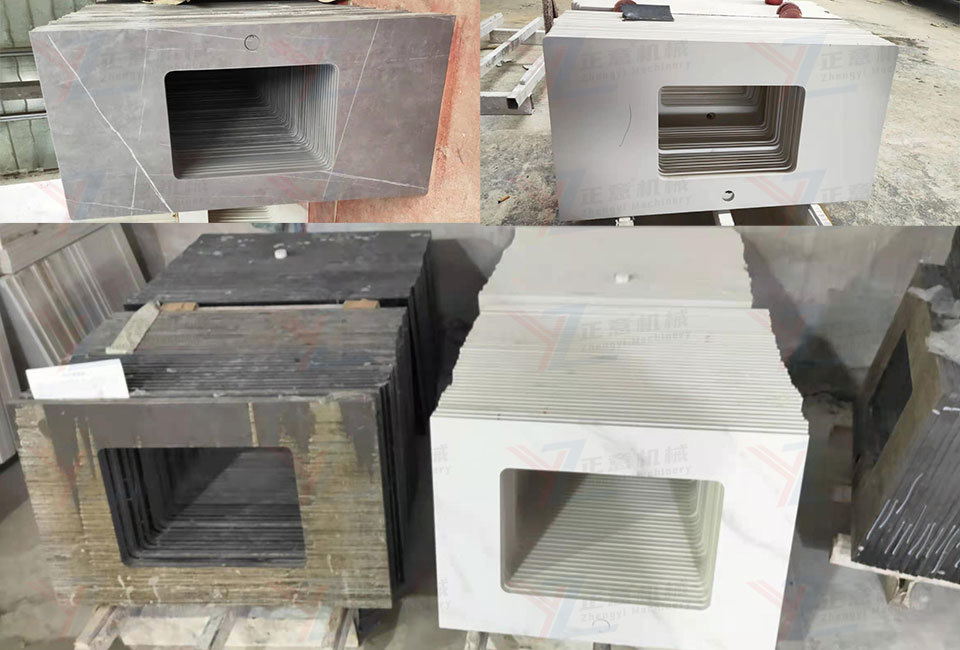

1. ZPK1600 pot hole machine is suitable for edging of rock slab/glass pot hole, round, oval and duckbill shape. 2. This machine is equipped with polishing and uses vacuum adsorption to absorb the product on the suction cup. 3. The motor drives the grinding wheel for processing. The grinding wheel is lifted and lowered by the air cylinder. Two to three wheels can be installed for simultaneous processing. Technical parameters: Processing thickness: 3-25mm Maximum size of machined inner hole: 500*800mm Maximum outer round diameter: 1600mm Maximum size diameter: 1800mm Speed:0.5-2.5m/min Total power: 4kw Total weight: 500kg Size: 1300*700*1600mm Voltage: 380V50Hz

Keyword

Rock Slab Basin Drilling Machine

pot hole machine

rock slab/glass pot hole edging

Related Products

Product Inquiry

Product Details

Technical parameters:
Processing thickness: 3-25mm
Maximum size of machined inner hole: 500*800mm
Maximum outer round diameter: 1600mm
Maximum size diameter: 1800mm
Speed:0.5-2.5m/min
Total power: 4kw
Total weight: 500kg
Size: 1300*700*1600mm
Voltage: 380V50Hz
