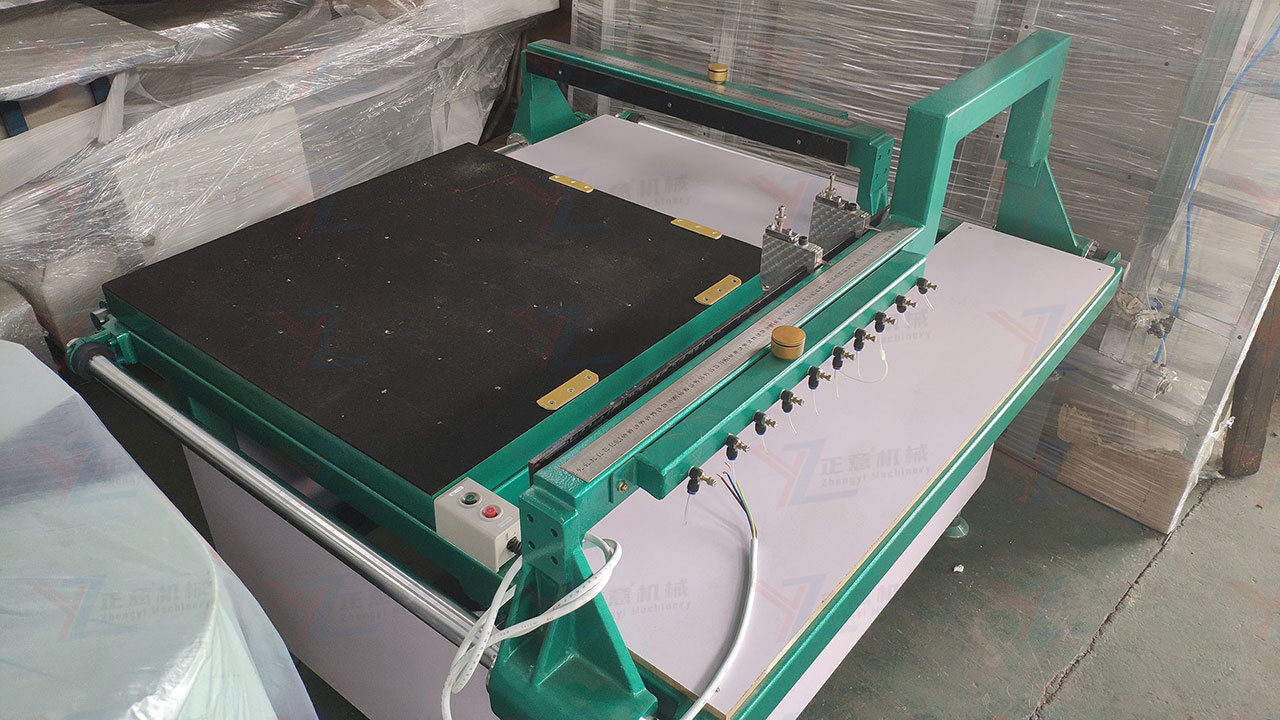

Glass Manual Precision Cutting Table ZQZ

Manual precision glass cutting table is used for large-scale cutting of square and rectangular glass special equipment, with high cutting accuracy, high multi-knife cutting efficiency, convenient replacement of knife wheels, accurate positioning of double-bridge interchange and etc. The operation is simple, flexible, labor-saving, reduces labor intensity and improves production efficiency.The multi-knife cutting distance is adjusted manually, and the cutting process is done manually. According to the production needs, the blowing and suction functions can be added, and the desktop materials include felt, epoxy resin, cast iron, artificial leather, marble and other materials for users to choose. Main Features： ◆Multi-knife cutting is efficient, easy to operate and the knife box can be increased as needed. ◆The tool holder lubricates itself, and the tool wheel is easy to replace. ◆High cutting precision, long service life, beautiful appearance. ◆There are many product models, the thickness of cutting glass is 0.1-19mm, the maximum cutting size is 4900×3400mm, the minimum cutting size is 7×7mm, and the cutting accuracy is ≤±.01mm/m.

Keyword

Manual precision glass cutting table

Glass Manual Precision Cutting Table

Related Products

Product Inquiry

Product Details

Mechanical introduction：
Manual precision glass cutting table is used for large-scale cutting of square and rectangular glass special equipment, with high cutting accuracy, high multi-knife cutting efficiency, convenient replacement of knife wheels, accurate positioning of double-bridge interchange and etc. The operation is simple, flexible, labor-saving, reduces labor intensity and improves production efficiency.The multi-knife cutting distance is adjusted manually, and the cutting process is done manually. According to the production needs, the blowing and suction functions can be added, and the desktop materials include felt, epoxy resin, cast iron, artificial leather, marble and other materials for users to choose.

Main Features：
◆Multi-knife cutting is efficient, easy to operate and the knife box can be increased as needed.
◆The tool holder lubricates itself, and the tool wheel is easy to replace.
◆High cutting precision, long service life, beautiful appearance.

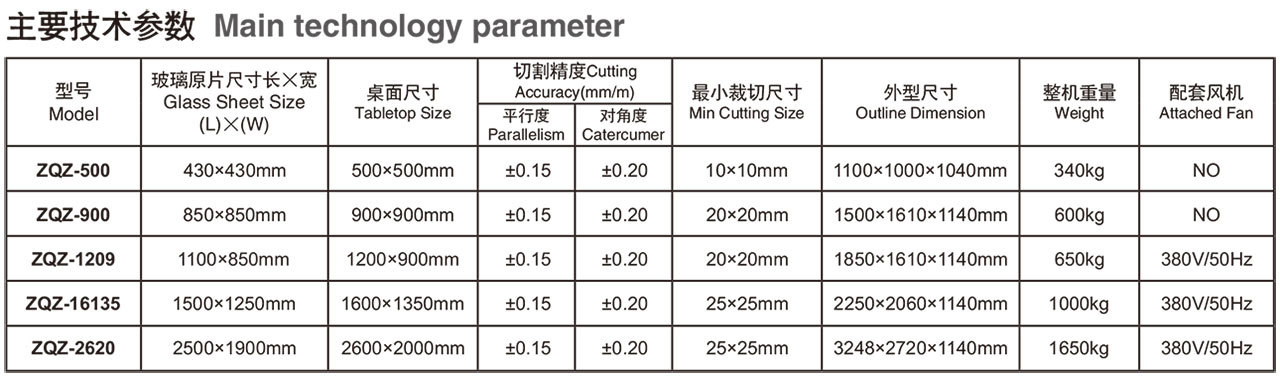

◆There are many product models, the thickness of cutting glass is 0.1-19mm, the maximum cutting size is 4900×3400mm, the minimum cutting size is 7×7mm, and the cutting accuracy is ≤±.01mm/m.
